Every tool, MES node, and process control loop depends on proximity and predictable performance. But heat buildup in control panels, energy-intensive cooling systems, and contamination risks all erode throughput and compress margins. As fabs scale and instruments become more sensitive, infrastructure cannot be an afterthought.

Rittal's modular enclosures, Blue E+ climate control, and RiLineX power distribution systems protect critical equipment, from tool control panels to edge IT racks. Our cleanroom-compliant solutions reduce energy consumption by up to 75%, ensure thermal stability, and simplify deployment across CHIPS Act expansion projects.

SCHEDULE YOUR THERMAL ASSESSMENT

Front-End Manufacturing
Back-End Manufacturing

Front-End Manufacturing

Wafer Fabrication & Cleanroom Operations

Advanced wafer fabrication environments demand extreme contamination control, thermal stability, and process consistency. Infrastructure must support ISO Class 1-5 cleanroom environments while helping Fabs and OEMs protect yield, maintain uptime, and support SEMI design requirements.

Critical Requirements

Contamination-sensitive manufacturing environments
Low particle generation and low-outgassing materials
Thermal stability for process-critical equipment
Support for up to ISO Class 5 cleanroom environments
Equipment designs that support OEM SEMI S2 and S8 objectives
Global design consistency across fab locations

Rittal Solution

Closed-loop cooling solutions to minimize contamination risk
304 and 316L stainless-steel enclosure platforms
Low particle-shedding enclosure designs
Modular enclosure systems for OEM equipment integration
Application engineering support from concept through deployment
Global engineering, manufacturing, and support resources

Back-End Manufacturing

Assembly, Packaging, and Test/OSAT

As wafers move into final assembly, packaging, and test operations, infrastructure priorities shift toward automation density, power distribution, scalability, and uptime. High-throughput facilities require standardized platforms capable of supporting rapid expansion while maintaining operational efficiency.

Critical Requirements

Reliable power distribution architectures
Flexible infrastructure for expanding production lines
Energy-efficient panel operation
Minimized downtime during maintenance activities
Standardized platforms across multiple facilities
Fast deployment and serviceability

Rittal Solution

RiLineX touch-safe busbar power distribution
VX modular and AX compact enclosure systems
Blue e+ cooling technology for reduced energy consumption
Global spare parts availability and service support
Seismic-rated enclosure options for critical installations
Scalable infrastructure for automated production lines

Co-Engineering Support for Semiconductor Fabs & OEMs

Whether developing next-generation wafer processing equipment or expanding OSAT capacity, Rittal application engineers work alongside OEM design teams to support enclosure design, thermal management, power distribution architecture, compliance considerations, and global deployment strategies.

Services include:

Thermal calculations and cooling selection
Enclosure and electrical design support
Power distribution architecture consultation
Global deployment standardization
Local engineering and spare parts support

CONNECT WITH A SYSTEM CONSULTANT

edge-design-consultant-email-6

Bridge IT/OT Where Your Data Lives

Semiconductor manufacturing depends on continuous access to process, quality, and equipment data. The RiMatrix Micro Data Center provides the secure, scalable IT infrastructure needed to support MES platforms, SPC systems, traceability requirements, yield analytics, and real-time manufacturing operation:

Enable SPC data collection and analysis to help identify process drift before yield is impacted
Provide infrastructure for equipment connectivity, process monitoring, and factory automation systems
Improve traceability through centralized management of production and quality data
Support yield analytics and continuous improvement initiatives with secure, localized computing resources

BEGIN YOUR DIGITAL TRANSFORMATION

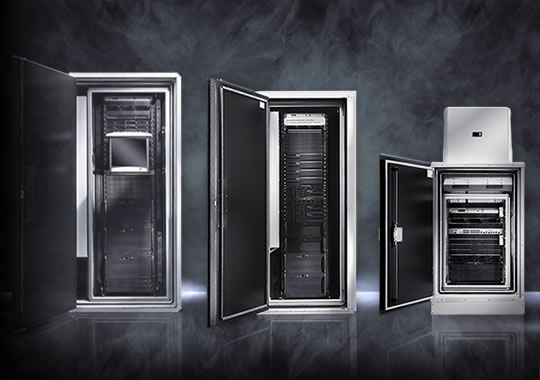

Keep Your Data at the Line

Cleanroom-Ready Infrastructure for Continuous Operation

Traceability: Maintain digital records with Eplan and cloud-based documentation with ePOCKET
Standardization: Multi-voltage cooling works across global facilities, reducing spare parts inventory and simplify maintenance
Modularity: Compact designs free up space for additional equipment and easier service access
Closed-Loop Cooling: Protect components and processes against contaminants to maximize yield
U.S. Manufacturing: Locally produced and stocked components help shorten replacement lead times
Smart, Connected Manufacturing: Edge IT racks keep production and user data close to the process for faster decisions and better uptime

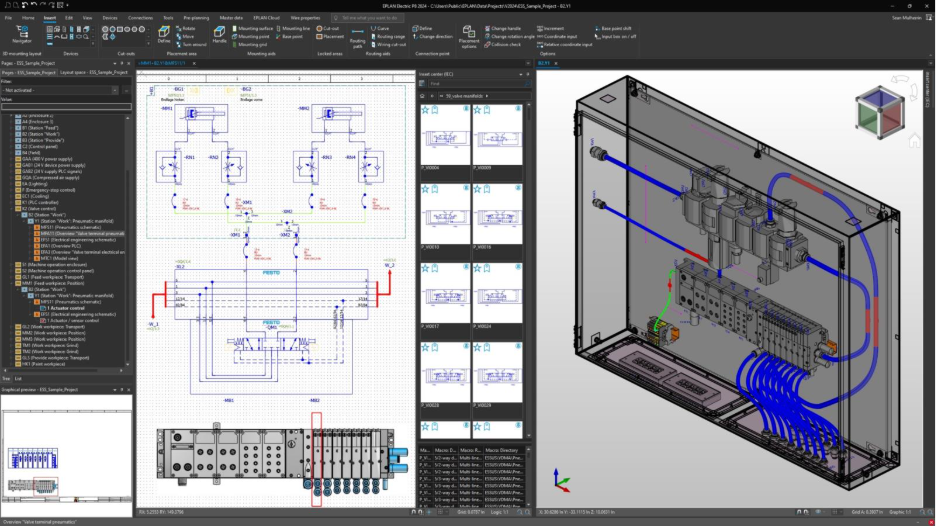

Ready to Take ECAD to the Next Level?

Eplan’s Intelligent schematic design software vastly reduces layout time and helps eliminate errors and busywork associated with project changes

Effortlessly move from 2D schematics to 3D panel design with integrated tools that effortlessly move between both processes

Eplan’s integrated fluid power design capabilities means engineers can design pneumatic, hydraulic and electrical control systems in one system

Get seamless production integration with Eplan’s complete suite of systems that go from schematics to shop floor panel assembly, speeding production while reducing human error.

GET STARTED WITH EPLAN

Talk to an expert today!

"Every fab faces unique demands: control standards, processes, thermal loads, and cleanroom classifications, yield targets, and different tool integration requirements.

That's why we don't start with a catalog. We start with your specific requirements, and together we engineer enclosures, cooling, power distribution, and documentation that solve your actual problems."

Semih Kocahasan, Vertical Market Manager | Semiconductor
